Late comments about the VK9NA expedition I joined in January 2011. This was a VHF/UHF/microwave and 2m EME operation. Due to quite poor conditions for tropo across to the mainland, we eventually did most of the operation on 2m EME. However we did try to make contacts and ran a lot of CQs on 144 MHz every day. We did make some contacts but there were nowhere near the number of tropo contacts made last year. The 144 MHz band was the main band used for this work.
We activated the station every day on 6m as well, from the hotel site.
Due to the high winds experienced on the hill we moved the EME station to the Guide Hall where we had been kindly offered the use of the grounds.
On Norfolk the internet access is provided by Wifi connections at hotels/resorts and a few in the Burnt Pine business area. I found it was necessary to buy several different cards to get access via NIDS, Norfolk telecom and another account for access at the hotel I stayed at. Wifi access from Mt Pitt was good, from the hotel the others stayed at, access to NIDS was not good.
The radio conditions on vhf up were not as good as they had been in 2010. This was partly due to physical weather conditions, including strong winds for the duration of the operation from 8th to 20th January. On the weekend of the summer field day conditions were very poor and the only contacts made with the mainland that weekend were on 6m, and there were not many of them.
The 2m EME operation was very successful. Over a hundred contacts were made using JT65 via the FT897 and a laptop computer running the WSJT software. A TE systems amplifier boosted the output power of the FT897 for EME work. The list of stations worked is at the VK9NA website.
I greatly enjoyed the event. I learned how to use WSJT on both FSK441 and JT65B, and learned a bit about pointing a very large 2m antenna (19 elements, 12 metres length) at the moon and periodically repointing it. For about half or more of the time, the moon was not visible so we were relying on compass bearings corrected for mag offset/declination and an inclinometer for the elevation.
I also became familiar with the FT897 and found what a great radio it is for this kind of operation. The other radios used were FT817 and a TS2000 which I found to be a very good radio too.
The TS2000 has an option to automatically transmit CW at a 700 hz offset (actually the offset equals your selected cw beat note and sidetone frequency) when you switch from USB to CW. It also has an option to automatically switch from SSB to CW mode if you press the key, whether it’s an automatic key or a hand key. Very neat.
Apart from the radio aspects it was also great to get to know Michael VK3KH, Alan VK3XPD, Kevin VK4UH. We were fortunate in being well organised on the social and meals front by Michael’s wife Roz and her sister Gail, and Alan’s wife Aileen all of whom made this event that much more enjoyable.
We did attend a few local special events such as the fish fry, the progressive dinner and the re-enactment drama based on the voyage of the Bounty, the eventual mutiny led by Fletcher Christian and the exile of the mutineers at Pitcairn Island. This history is a proud aspect of the Norfolk Island culture today.
A great event and a fun filled 10 day trip for me.
Here are some photos at Flickr:

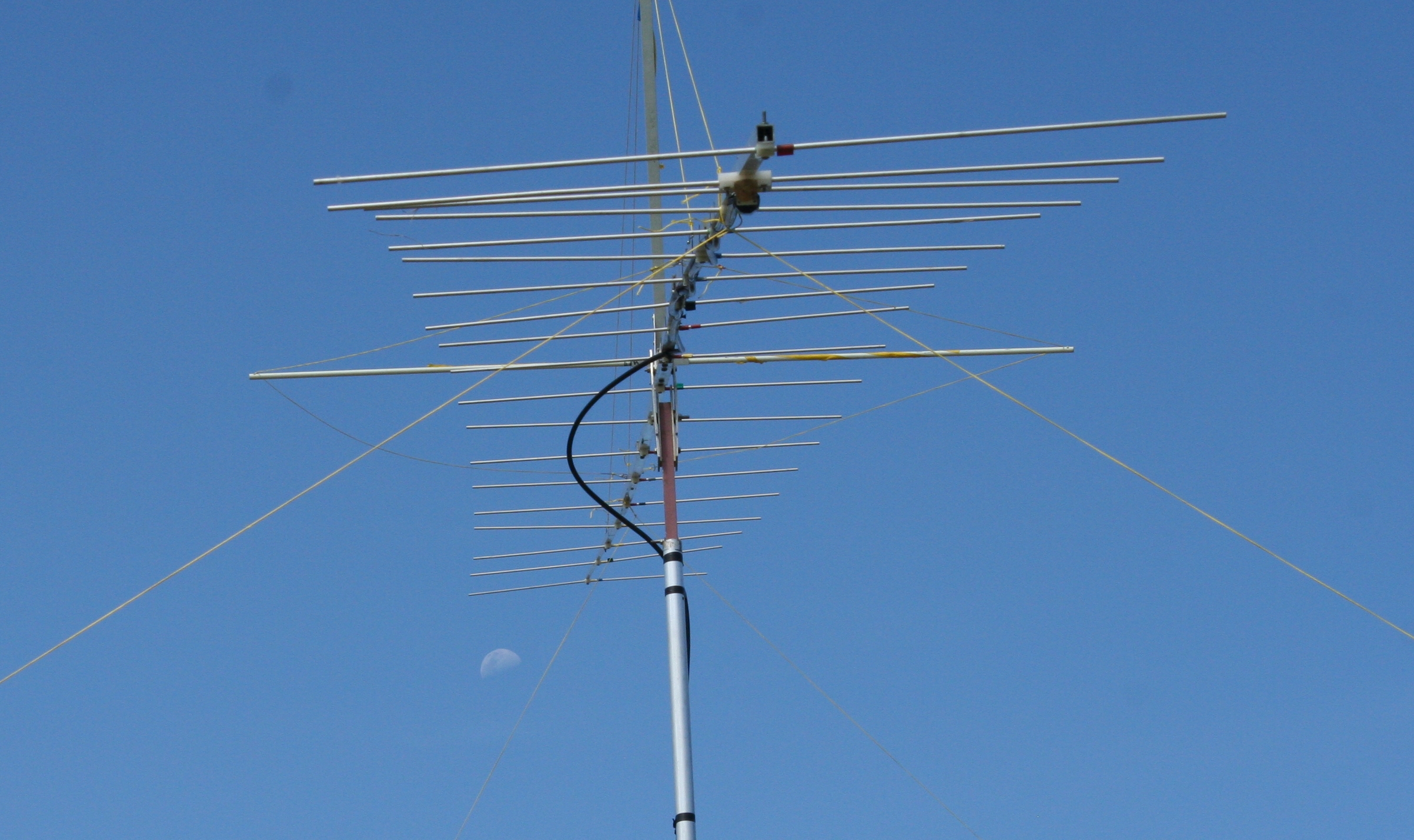

Here is one photo of the EME antenna. Remember it is 12 metres long. There are 19 elements. Click the photo for a larger view. The long “element” in the centre of the boom is just a truss boom – the antenna has vertical and horizontal stabilisation to prevent it flexing and losing gain.
