Qualifying a summit – making 4 interstate contacts – using the 500 milliwatt Pixie morse transceiver

I built up the Pixie kit, having bought it a year ago or more, just to see how it worked and intended to try it out on a SOTA activation.

Being invited to accompany Andrew VK1AD to Mt Marulan for a return visit, having done the same in December 2018, I decided to take the Pixie along to see if it could make even one contact with 40m conditions as dicey as they are at present.

I set up the station to use the Pixie, with the ZS6BKW doublet fed through an Elecraft T1 tuner and the choke balun recently built. (Did I write about that? Maybe not.)

I listened for a minute or two on the Pixie’s 7023 khz and could hear VK2ARZ calling CQ with a very high offset frequency, my guess was that he was on 7025 so would not hear me operating on 7023. The Pixie’s receiver is a direct conversion receiver without any inherent selectivity so if my ears had 10 khz frequency response I would have heard stations out to that offset in both directions, ie. higher and lower in actual frequency, eg. A signal on 7013 would produce a 10 khz frequency difference so the 10 khz would be coming through the receiver, as would a 7033 khz signal also produce a 10 khz audio frequency. My 69 year old ears don’t have that bandwidth any more, they have an inbuilt low pass filter.  🙂

So I spotted myself on Sotawatch using the vk port-a-log software on the android tablet, called CQ using the little blue hand key, listened, then called again. A big signal loomed in the earbuds and it sounded like a bug being used. Was it Steve VK7CW, yes, it certainly was, after the call letters marched across my ears and I logged the contact using the tablet. What strength was he? I didn’t know, sounded pretty good so I gave him 579. Received 559 in reply, not bad for half a watt. Steve said he was running an FT817 at 5 watts out. Monster power.

Three more contacts, regulars John VK4TJ in Toowoomba, Peter VK3PF in Churchill Victoria, and finally Paul VK3HN from Melbourne made it into the Pixie log and I’d qualified the summit in 11 minutes using a Pixie half watt, two transistor + one IC transceiver, that had cost me $9 for the kit.

In between the contacts I could hear some weak signals and I wondered how strong they were, perhaps they were others who I wasn’t hearing well enough to copy. So after completing the 4th contact and calling another CQ just to be sure I had worked all who were there, I transferred the antenna to the KX3 and had a better listen to the weak signals. They were weak on that radio too, and I think they were dx stations, probably US operators in a contest of some kind.

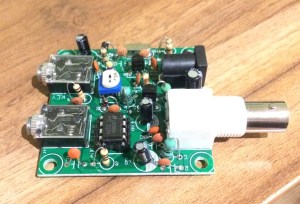

Pixie 500 mw transceiver as built above, and as used, below

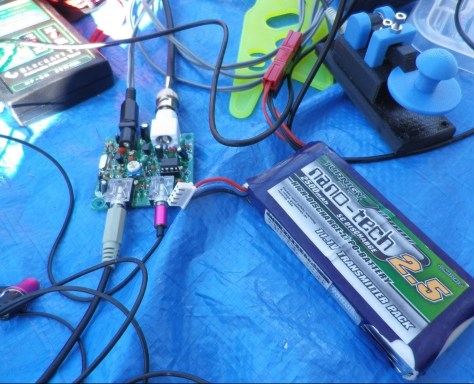

L-R: Elecraft T1 tuner top left, Pixie PCB, 3S LIPO battery, cwmorse.us hand key. The Pixie board is about 2″ x 2″ or 50mm sq.

The rest of the activation was fairly straightforward using the KX3 and the same doublet antenna, some contacts on 80m, most on 40m, the Shires contest was running so I had to look up my shire, I quoted GM2 (Goulburn Mulwaree) so I hoped that was correct.
